RTPFC Panel — Real-Time Power Factor Correction

An RTPFC Panel (Real-Time Power Factor Correction Panel) uses thyristor-switched capacitors to provide instantaneous reactive power compensation for rapidly varying loads. Unlike APFC panels with mechanical contactors, RTPFC responds in milliseconds with zero switching transients.

RTPFC Panel - Q Sine energy

  • Rating: 100kVAr to 2000 kVAr
  • Maintains Power Factor close to Unity by reducing KVAh consumption
  • Saves Electrical Energy cost and Penalties by reducing losses generated in transformer and power cables in the electrical network
  • Improved Power factor allows better use of components and increased available installed capacity
  • Avoids distortion
  • Reduces Maximum Demand and avoid penalty giving energy savings
  • Transient free switching with the help of Thyristor Switching Module(TSM)
  • Increases Equipment and Power Reliability
  • AC Capacitor life by balancing operation period
  • Improved Power factor by sensing current feedback at HT transformer primary
  • Auto / Manual facility for AC Capacitor selection with MCB/MCCB/Fuse protection
  • Suitable for variable loads like Cement, Welding application, Steel Mills, Precision CNC application, Ports etc.
  • Available for balanced as well as unbalanced loads
Request a Quote
Download Catalogue

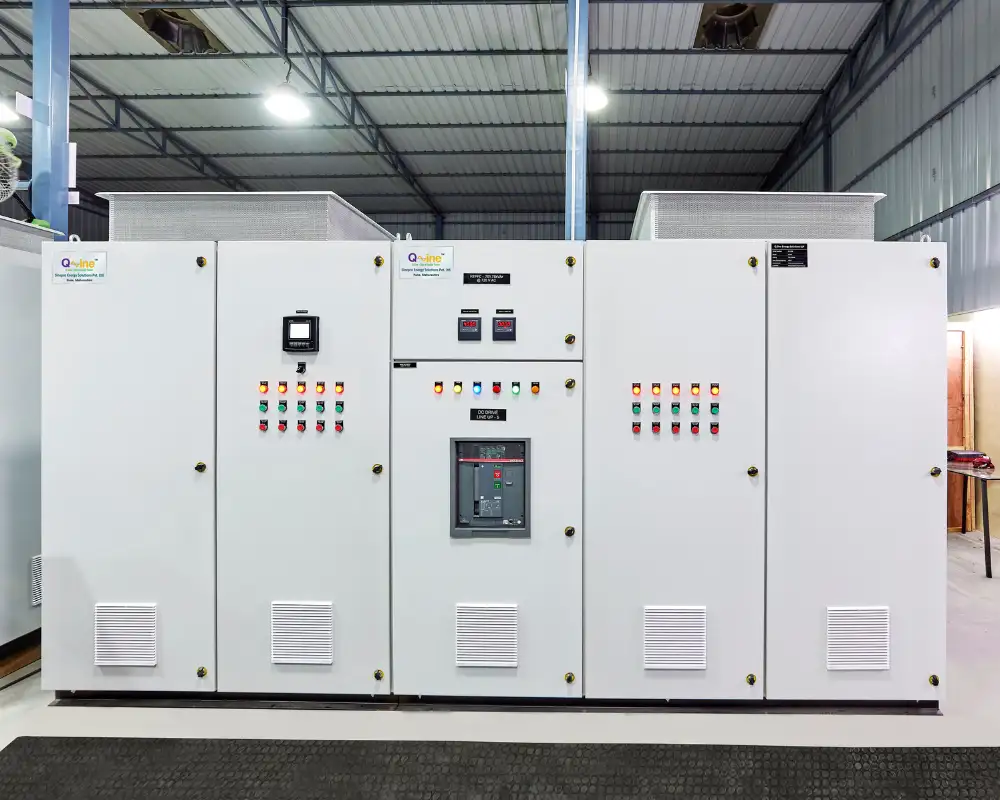

RTPFC Panel 1

Our Clients

What Our Valued Client Say About Us

For our pharma manufacturing unit, Q Sine implemented hybrid solution which gave us desired savings.
Fresenius Kabi India Pvt. Ltd.Project Incharge
With the installation of 2 x 600 A Active Harmonic Filters the harmonics level has been reduced to less than 3% complying to IEEE 519:2014 and now we are having stable PF. Thank you Q Sine.
Schaeffler India Ltd.Electrical Consultant ​
We were looking for savings by addressing harmonics related issues and Q SINE installed latest technology of 3 level Active Harmonic Filters at our plant. We are very happy achieving our savings goal in one Sugar season. Also, Our maintenance team have reported lesser failures.
Shahu SugarChief Engineer
Every textile industry faces acute harmonics issues. Q SINE installed 2550A AHF to mitigate our Harmonics issues and compliance to IEEE 519:2014. Now our operations suffer lesser interruption.
Sagar Manufacturers Pvt. Ltd.Project Head

Industries We Serve

Manufacturing
Automobile
Foundry
Hospitals
Packaging
Sugar Mills
Pharma
Datacenters
Textiles
FMCG
Agro Industries
Metal, Mineral & Mines

Case Studies

Precision Tools
↓60% THD Reduction

Sandvik Asia, Pune

⚡
Load Details Industrial machines
⚠️
Before Condition Current THD was 15%
🔧
Solution Deployed 100 Amp Active Harmonic Filter — 2 units
✅
After Solution Current THD reduced to 6%
Book Free Consultation
Textiles
2550A AHF Capacity

Sagar Manufacturers Pvt Ltd, Bhopal

⚡
Load Details Spinning mill machines
⚠️
Before Condition Current THD was 15%
🔧
Solution Deployed 150A AHF × 5 units + 300A AHF × 6 units
✅
After Solution Current THD reduced to 7%
Book Free Consultation
Pharma
0.995 Power Factor

Fresenius Kabi India Pvt. Ltd, Pune

⚡
Load Details Pharma machines
⚠️
Before Condition Power Factor was 0.97
🔧
Solution Deployed 510 KVAR Hybrid Panel — RTPFC + SVG
✅
After Solution Power Factor improved to 0.995
Book Free Consultation
Paper Mill
↓61% THD Reduction

Sampada Paper Mill, Sangli

⚡
Load Details Craft paper mill machines
⚠️
Before Condition THD 18%, VTHD 3.2%
🔧
Solution Deployed 200 Amp Active Harmonic Filter — 1 unit
✅
After Solution THD 7%, VTHD reduced to 2.5%
Book Free Consultation
CNC Machining
0.995 Power Factor

Yash Industries, Maharashtra

⚡
Load Details CNC machines
⚠️
Before Condition Power Factor concern at 0.97
🔧
Solution Deployed Active Power Factor correction via Static Var Generator (SVG)
✅
After Solution Power Factor improved to 0.995
Book Free Consultation
Agro Industry
0.995 Power Factor

Kisan Agro, Maharashtra

⚡
Load Details VFD and motors
⚠️
Before Condition Harmonics & Power Factor concern
🔧
Solution Deployed SVG for Power Factor + AHF for Harmonic mitigation
✅
After Solution PF improved to 0.995 & met IEEE 519:2014 standard
Book Free Consultation
